Portable 3D Scanner and 3D Software
The 3D digitization solutions offered by 3DeVOK are composed of iReal M3 dual-laser 3D scanner, iReal 2E color 3D scanner, 3DeVOK Studio Scanning software, and 3DeVOK Mapping software. 3DeVOK series 3D scanners come with 3DeVOK Studio Scanning software, and 3DeVOK mapping software serves 3D scanners to generate realistic textures in an intelligent and automatic method.

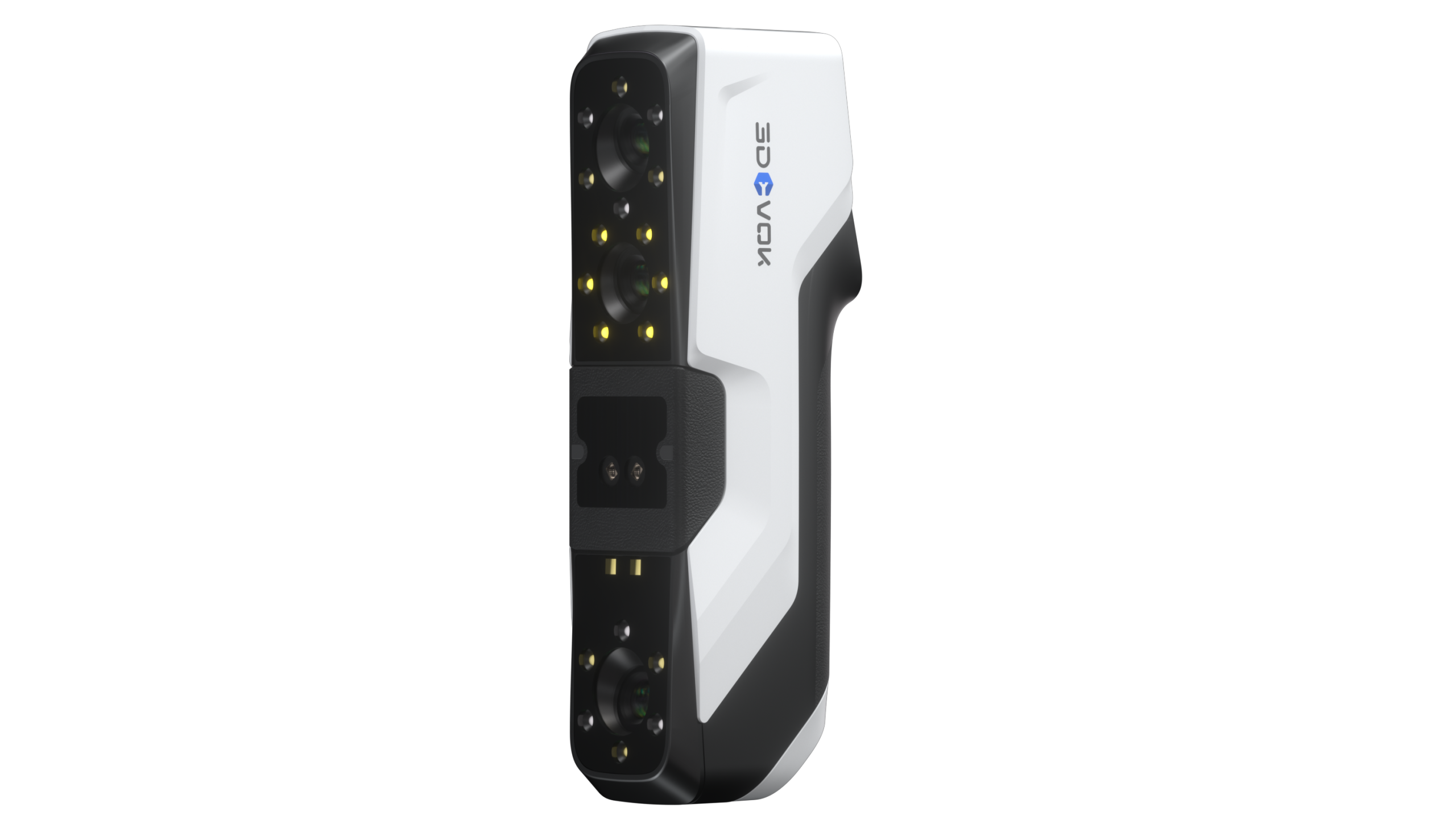

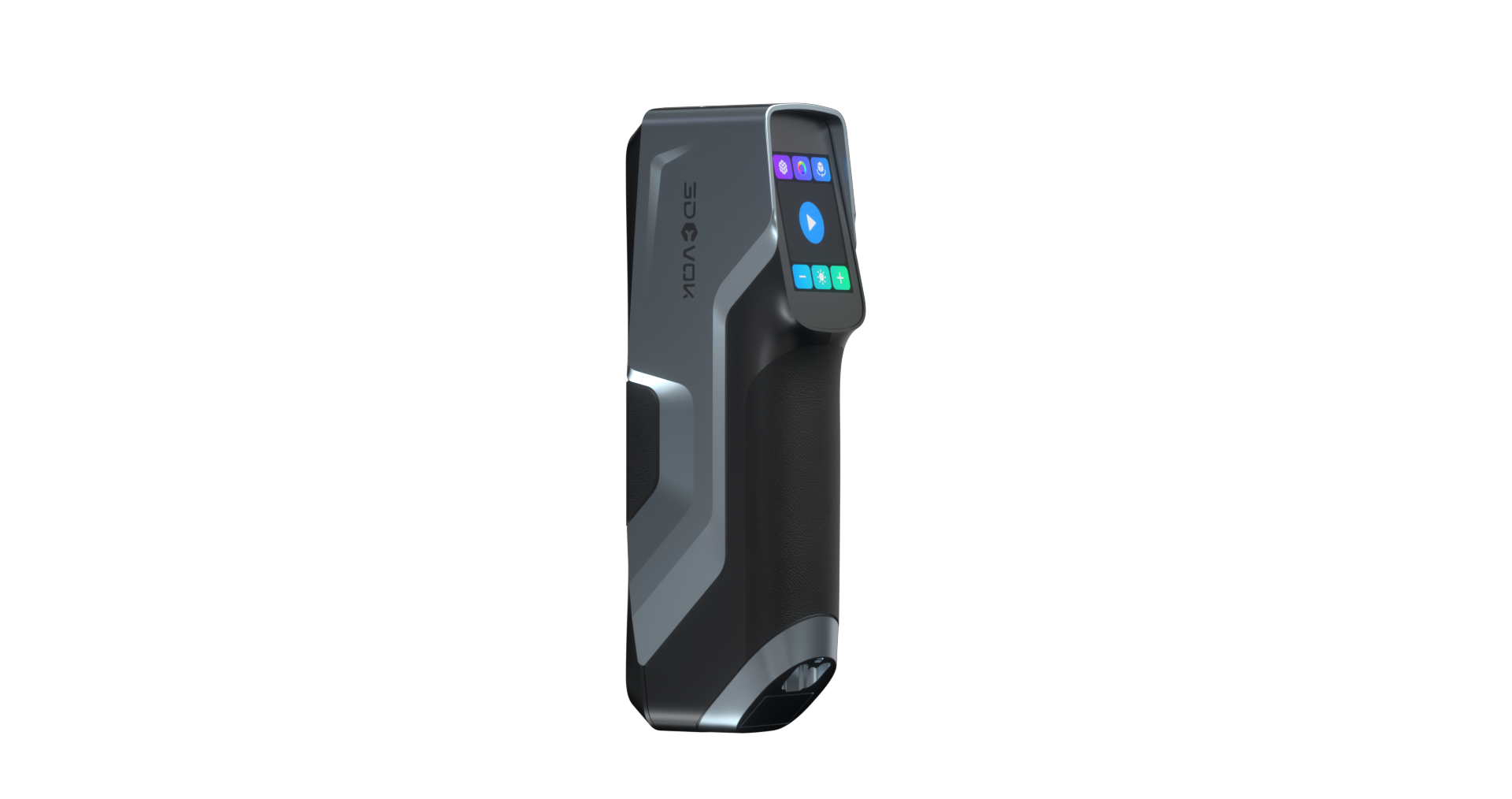

iReal M3 3D Scanner
Dual-Infrared Laser 3D Scanner, Versatility at Your Fingertips
The newly-launched iReal M3 handheld professional-grade 3D scanner, featuring dual light sources – infrared parallel lasers and infrared VCSEL structured light, enables fast and smooth data acquisition of various objects with different sizes and materials. It brings cost-effective 3D digitization solutions to 3D engineers, 3D designers, and scientific researchers to fulfill their demands of industrial design, art design, medical design, human body digitization, etc.
Price: $6,980
* Please note the price DOES NOT include taxes, import fees, computers, on-site support services (training, etc.), and any other additional costs that may include. Pricing for services varies by region. The European area adopts the EUR (€) as the unit of currency, while the extra-European countries use USD ($).
iReal 2E 3D Scanner
Entry-level professional 3D scanner
iReal 2E color 3D scanner adopts infrared VCSEL structured light, with optimized algorithm to 3D scan human bodies and medium and large-sized objects. Ultra-large Field of View and deep Depth of Field, let’s get start with 3D scanner easily with iReal 2E.
Price: $3,980
* Please note the price DOES NOT include taxes, import fees, computers, on-site support services (training, etc.), and any other additional costs that may include. Pricing for services varies by region. The European area adopts the EUR (€) as the unit of currency, while the extra-European countries use USD ($).
iReal M3 VS iReal 2E
 |
||||
 |
 |
|||
| iReal M3 | iReal 2E | |||
| Product Differences | Light Source | 7 Infrared Parallel Laser Lines | 2 Infrared VCSELs① | 3 Infrared VCSELs |
| Scanning Mode | Infrared Parallel Laser Lines | Speckle-Surface Scanning | ||
| Scanning Performance | Accuracy | Up to 0.25mm/m | Up to 0.3mm/m | |
| Min. Point Distance | 0.1mm | 0.2mm | ||
| Recommended Object Size | Larger than 0.05m | Larger than 0.3m | ||
| Recommended Scanned Objects | The scanned objects are nearly unlimited with not very high accuracy requirements, including human bodies, industrial parts, arts, and sculptures. | Human bodies, medium and large-sized objects, and items with not very high accuracy requirements (eg. car foot mat) | ||
| Material Adaptability | Most dark, shiny, and reflective objects can be scanned without scanning spray. | Scanning spray is needed to scan most dark, shiny, and reflective objects. | ||
| Scanning Speed | Up to 60 FPS | Up to 15 FPS | ||
| Outdoor Scanning | Support② | |||
| Description | ① Compared with a single VCSEL, the linear-array structured light composed of 2 or 3 VCSELs has stronger infrared speckle brightness and stronger black scanning ability.
In the linear-array structured light mode, there is no essential difference in scanning ability between 2 or 3 VCSELs. The brightness of the pattern projected by the 3 VCSELs will be slightly stronger, and the black scanning ability will be slightly stronger. |
|||
| ② It doesn’t support calibration under direct sunlight outdoors. | ||||
Still have questions on which 3D scanner to choose?
Whether it is 3DeVOK series 3D scanner or a 3D laser scanner from Scantech, we are happy to help.
3D Software from 3DeVOK
Transform your vision into reality

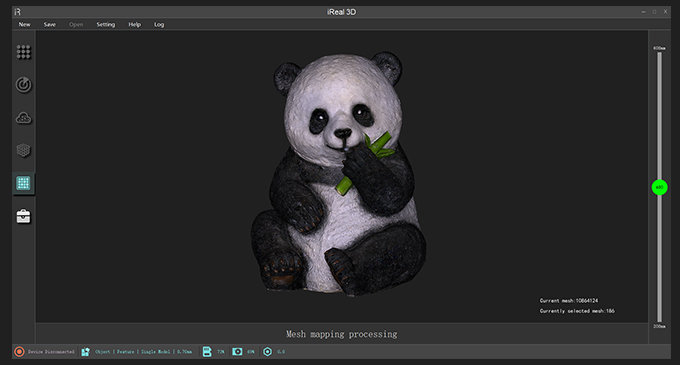

3DeVOK Studio Scanning Software
Constantly updated algorithm, user-friendly UI design. Matcap function, real-time smart color map, intelligent diagnosis, etc., works excellently with 3DeVOK series 3D scanners.
Learn More

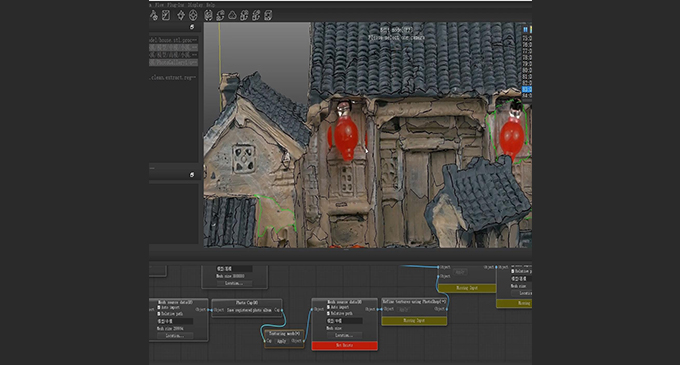

3DeVOK Mapping Software
A smart texture mapping software that enables you turning a non-color 3D file into a color 3D one in a short time. With only a STL file and multi-angle photos.
Learn More3D Scanning in Action
Digital Humans
(The picture is a schematic only)
- Portrait figurine customization
- Artistic makeup
- Animation
…

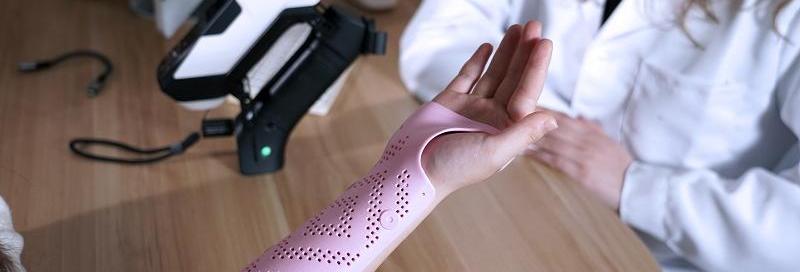

Medical Rehabilitation
(The picture is a schematic only)
- Helmet therapy customization for babies
- Spinal Orthosis customization
- Precision medical treatment
…

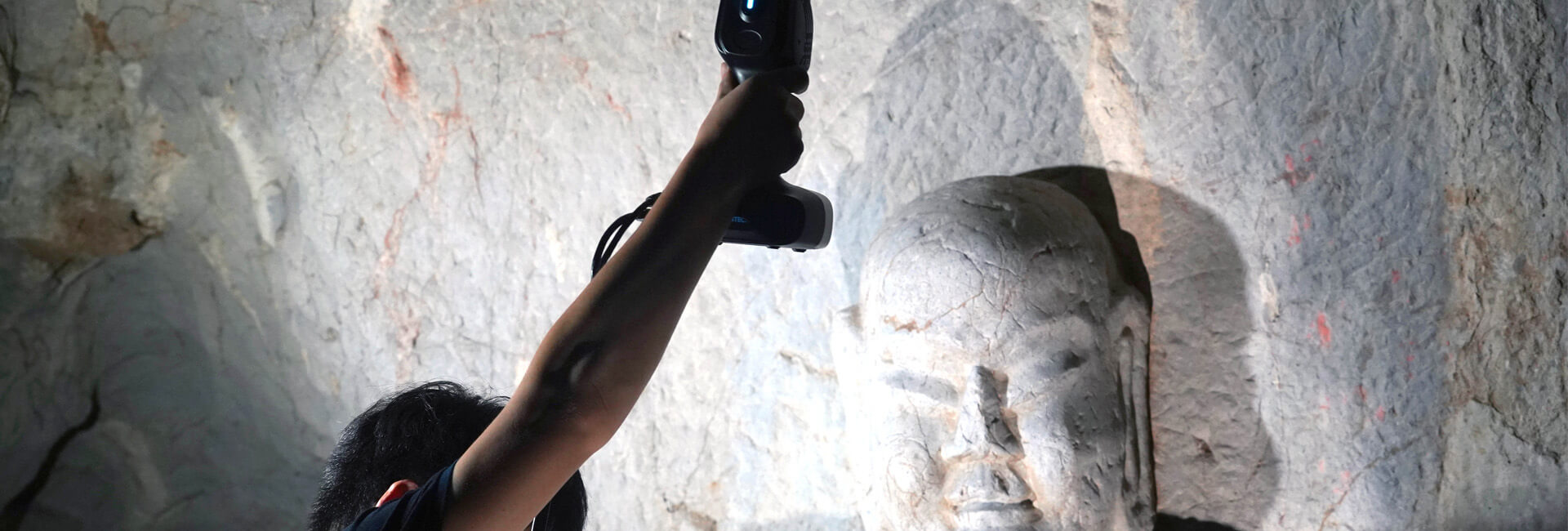

Cultural Relics and Archaeology
(The picture is a schematic only)
- Heritage protection
- Heritage derivatives design and manufacturing
- Dinosaur fossils research
…
Art and Design
(The picture is a schematic only)
- Creative advertisement
- Toy recreation
- 3D digitization everything in daily life
…
Virtual Display
(The picture is a schematic only)
- Online exhibitions
- Digital archiving
- Virtual museums
…
Scientific Research and Education
(The picture is a schematic only)
- 3D digitization education
- 3D data support for scientific research
- Digitizing educational tools in universities
…

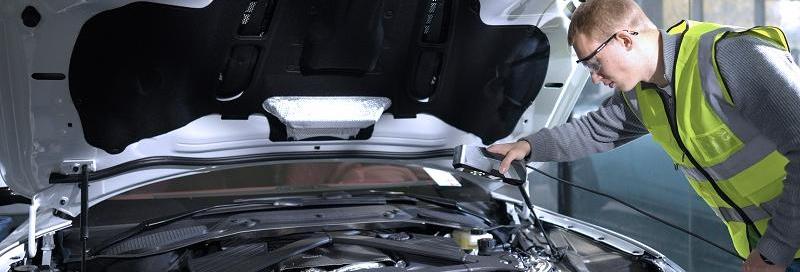

Reverse Engineering
(The picture is a schematic only)
- Car floor mat customization
- Industrial part reverse design
- Help obtain production drawing
…

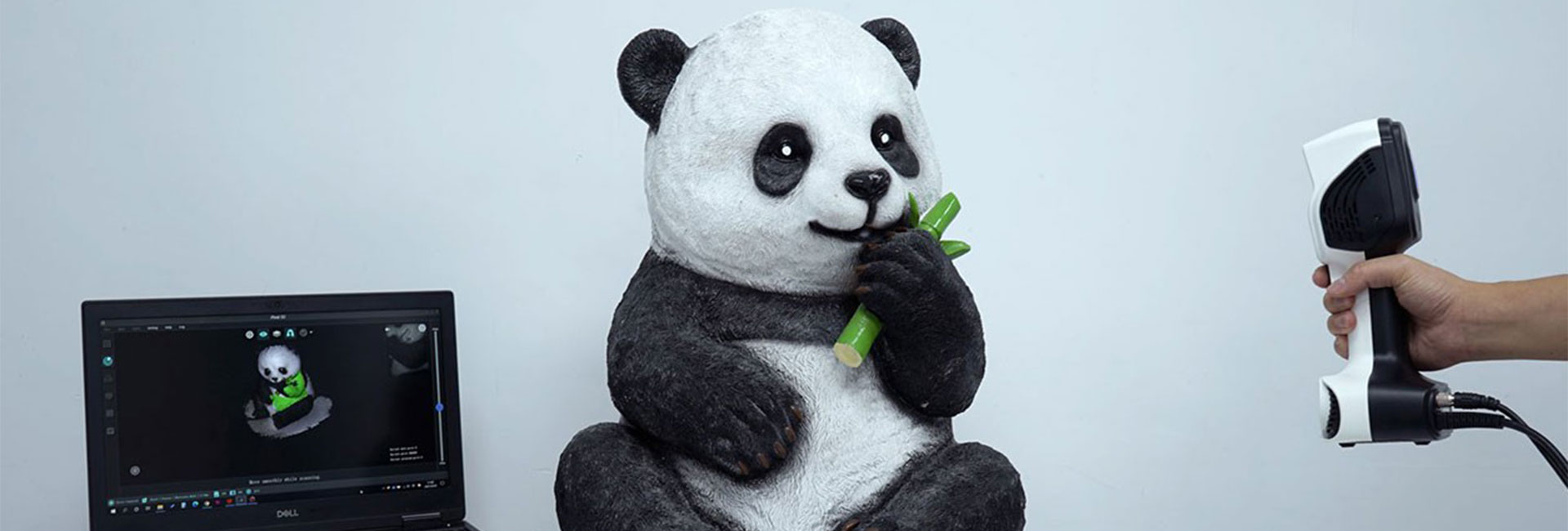

3D Model Analysis
(The picture is a schematic only)
- Plant growth morphology study
- Research of human body shape
- Clothes customization
…
Humans
Digital Humans
(The picture is a schematic only)
- Portrait figurine customization
- Artistic makeup
- Animation
…
Rehabilitation
Medical Rehabilitation
(The picture is a schematic only)
- Helmet therapy customization for babies
- Spinal Orthosis customization
- Precision medical treatment
…
and Archaeology
Cultural Relics and Archaeology
(The picture is a schematic only)
- Heritage protection
- Heritage derivatives design and manufacturing
- Dinosaur fossils research
…
Design
Art and Design
(The picture is a schematic only)
- Creative advertisement
- Toy recreation
- 3D digitization everything in daily life
…
Display
Virtual Display
(The picture is a schematic only)
- Online exhibitions
- Digital archiving
- Virtual museums
…
and Education
Scientific Research and Education
(The picture is a schematic only)
- 3D digitization education
- 3D data support for scientific research
- Digitizing educational tools in universities
…
Engineering
Reverse Engineering
(The picture is a schematic only)
- Car floor mat customization
- Industrial part reverse design
- Help obtain production drawing
…
Analysis
3D Model Analysis
(The picture is a schematic only)
- Plant growth morphology study
- Research of human body shape
- Clothes customization
…
See Models in 3D
Spaceman (Standing)
The Girl with the Book
Ceramic Vase
Ready to talk about our 3D products?
Contact us to learn more about portable 3D scanner, 3D software, and their 3D digitization solutions.
