3DeVOK MQ Empowers Professionals, Making Everyone A 3D Creator
22-Line Infrared Laser + Infrared Speckle with Double FoV
One scanner, endless possibilities—perfect for 3D printing, cultural heritage preservation, reverse engineering, creative design, art, medical rehabilitation, and research & education.
The ultimate 3D productivity partner for 3D printing farms, design studios, and small to medium-sized businesses.
MQ enables true wireless freedom, eliminating cable constraints.
It is intuitive and efficient—capture data anytime, anywhere, and bring your creativity to life effortlessly!
6 Key Features for Exceptional 3D Scanning Every Time
Accurate
- Up to 0.08mm accuracy for highly detailed scans
Detailed
- 0.1mm resolution captures even the finest details
Fast
- 4.5 million points per second for professional efficiency
Marker-free
- Infrared laser and speckle enable non-marker scanning
Vivid
- 24-bit color + texture mapping for true-to-life colors
Wireless
- Optional wireless handle for easy large-object scanning
Brand-new Hardware Upgrade
Dual-Mode Laser - Boundless Scanning
22-Line Infrared Laser
- The MQ 3D scanner features 22-line infrared laser technology, enabling seamless scanning of objects as small as 5cm across various materials. With up to 0.08mm accuracy, it meets the quasi-industrial 3D data acquisition demands.
Infrared Speckle with 2 Distinct FoV
- Designed specifically for scanning portraits, body parts, and medium to large objects (30cm and above), the scanner supports Fine and Fast Scanning at the ultra-wide scanning area up to 1,100mm × 1,000mm, enabling efficient scanning and easy operation.
Marker-free Data Capture
- Dual-Mode Laser (Infrared Laser & Infrared Speckle) enables marker-free 3D scanning, making 3D data acquisition more efficient and convenient.
3DeVOK MQ - Empowering Professionals
0.08mm
Accuracy up to
0.1mm
Resolution up to
Vivid
24-bit color + texture mapping

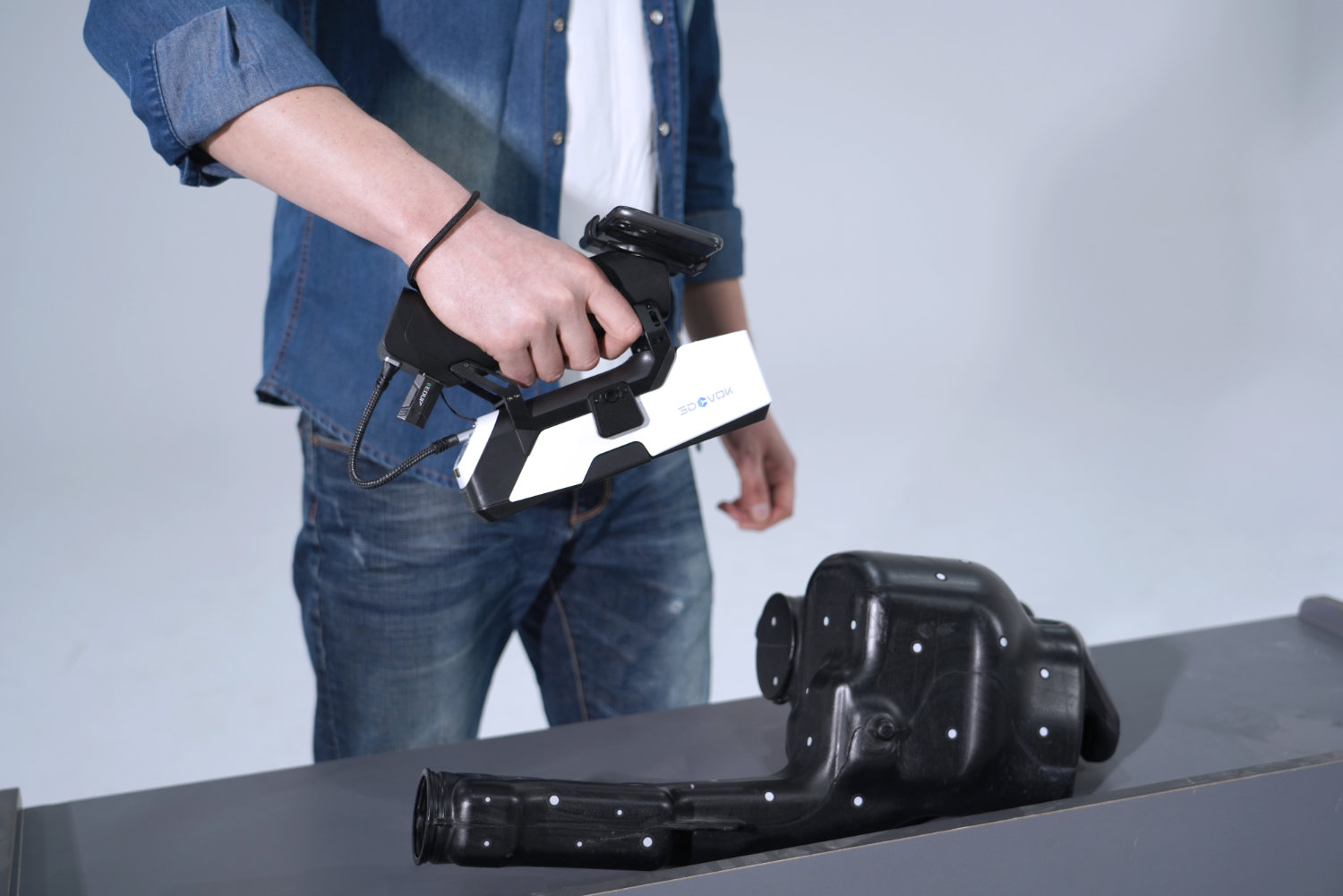

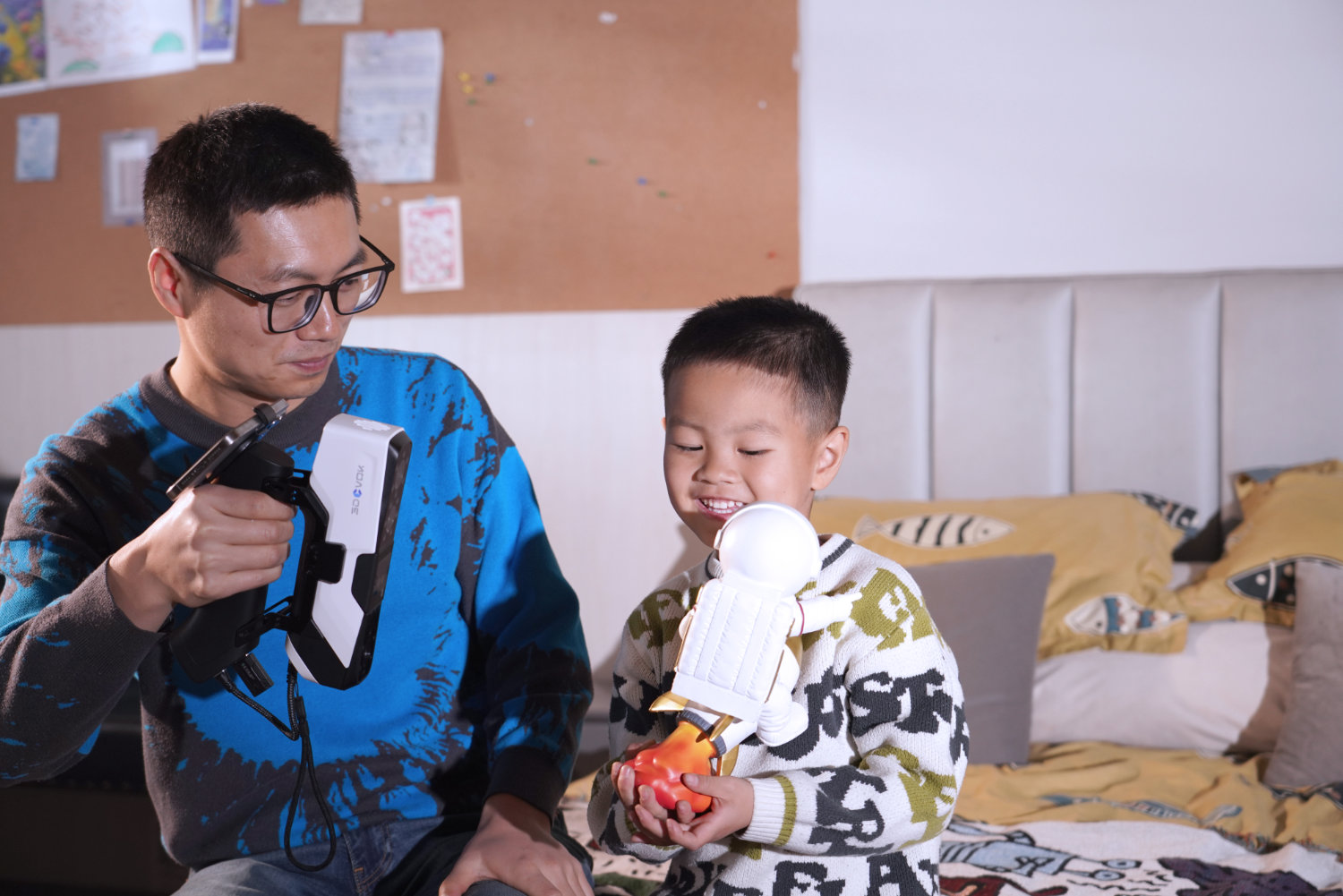

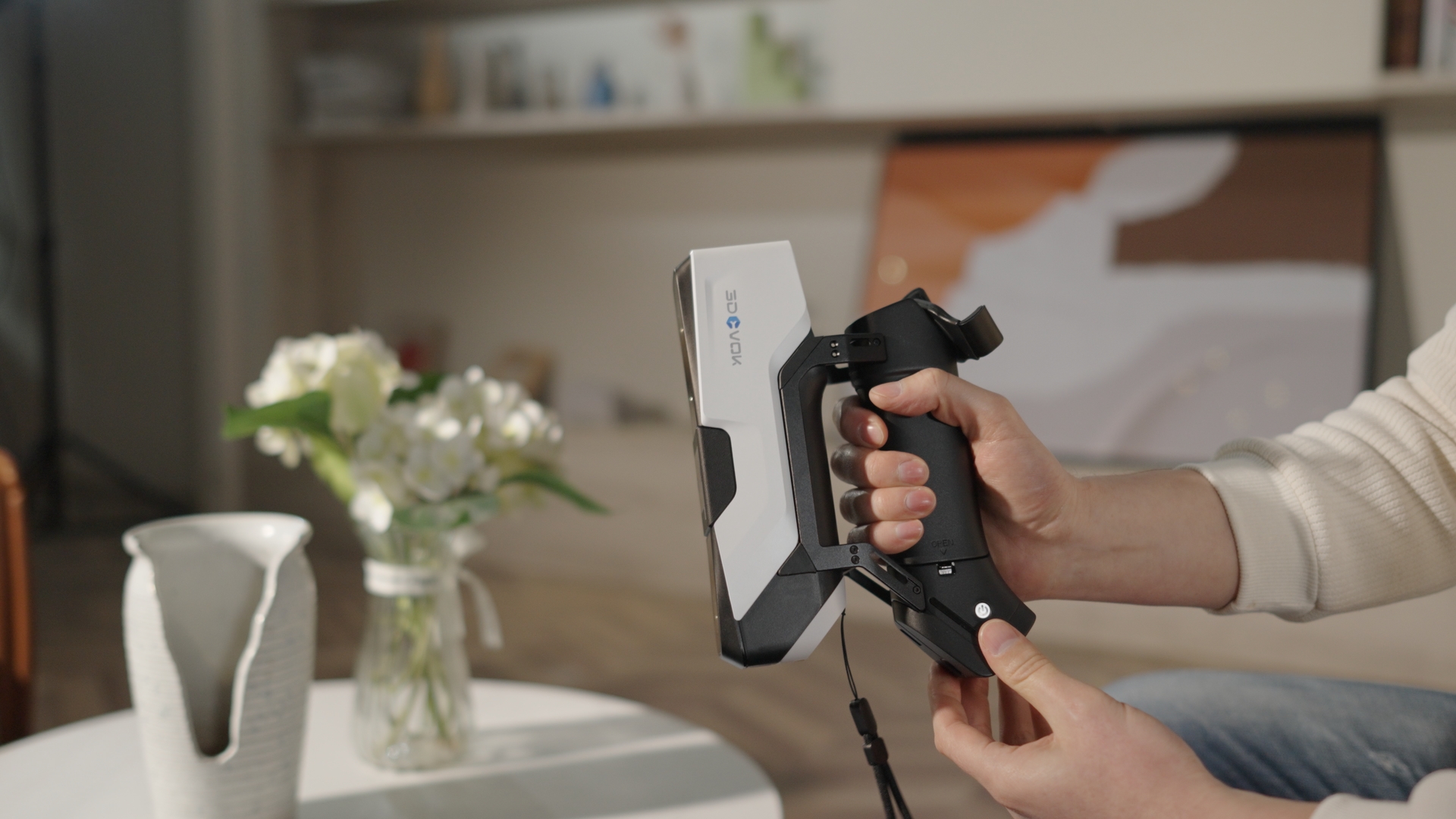

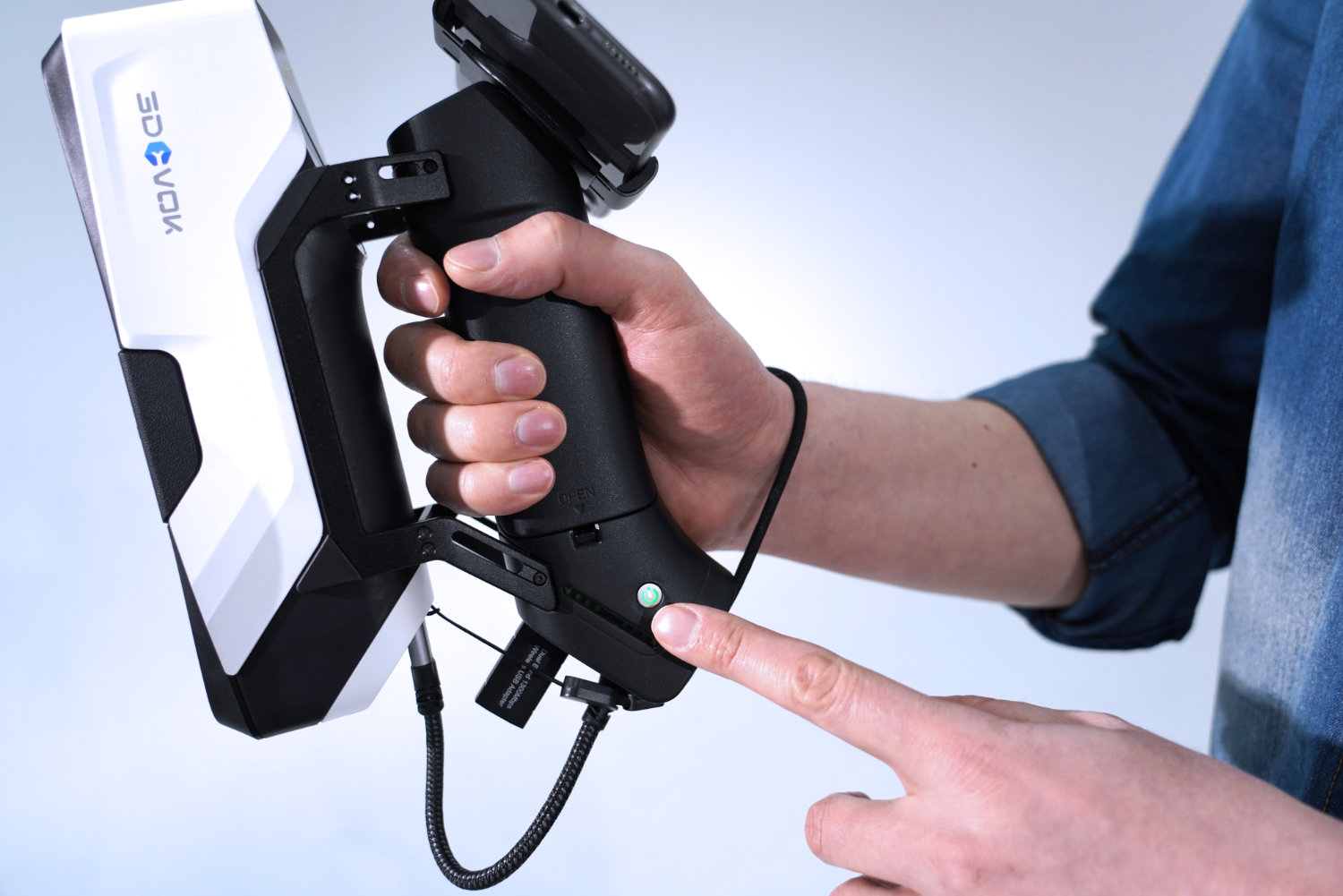

Wireless Freedom - Reliable Mobility
With an optional wireless handle, easily manage your scanning tasks
Multi-Size Scanning
Supports the scanning of objects ranging from 0.05 m to 5 m, accommodating diverse size requirements.
Handles Complex Materials
No powder is needed to scan challenging surfaces, including black and reflective objects, black hair, and multi-colored items.
Adaptable to Various Environments
Perform efficiently in indoor, outdoor, low-light, and even direct sunlight conditions, ensuring reliable results in any setting.
Embrace the Power of Versatility

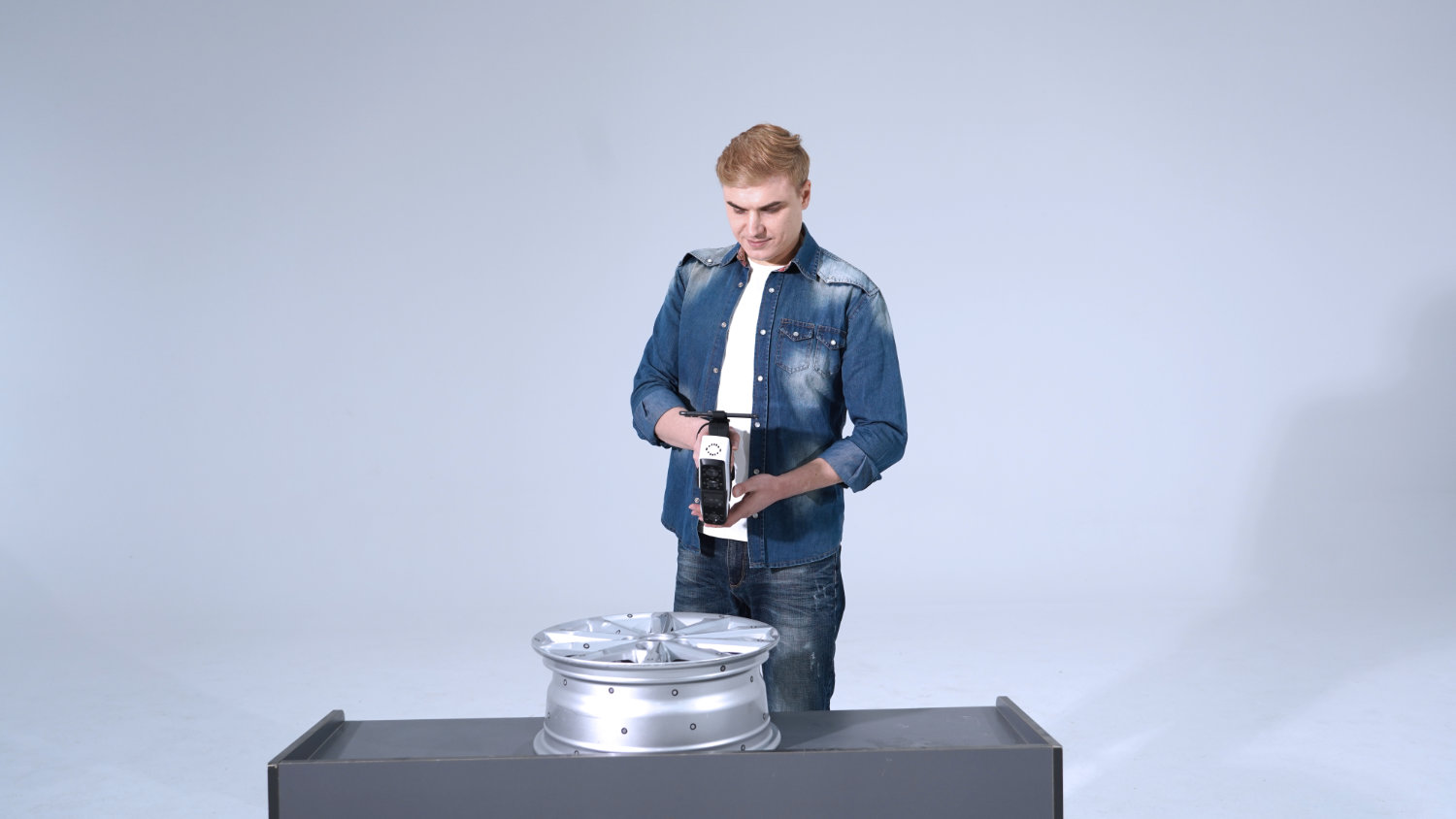

3D Printing
Bringing Creative Ideas to Life

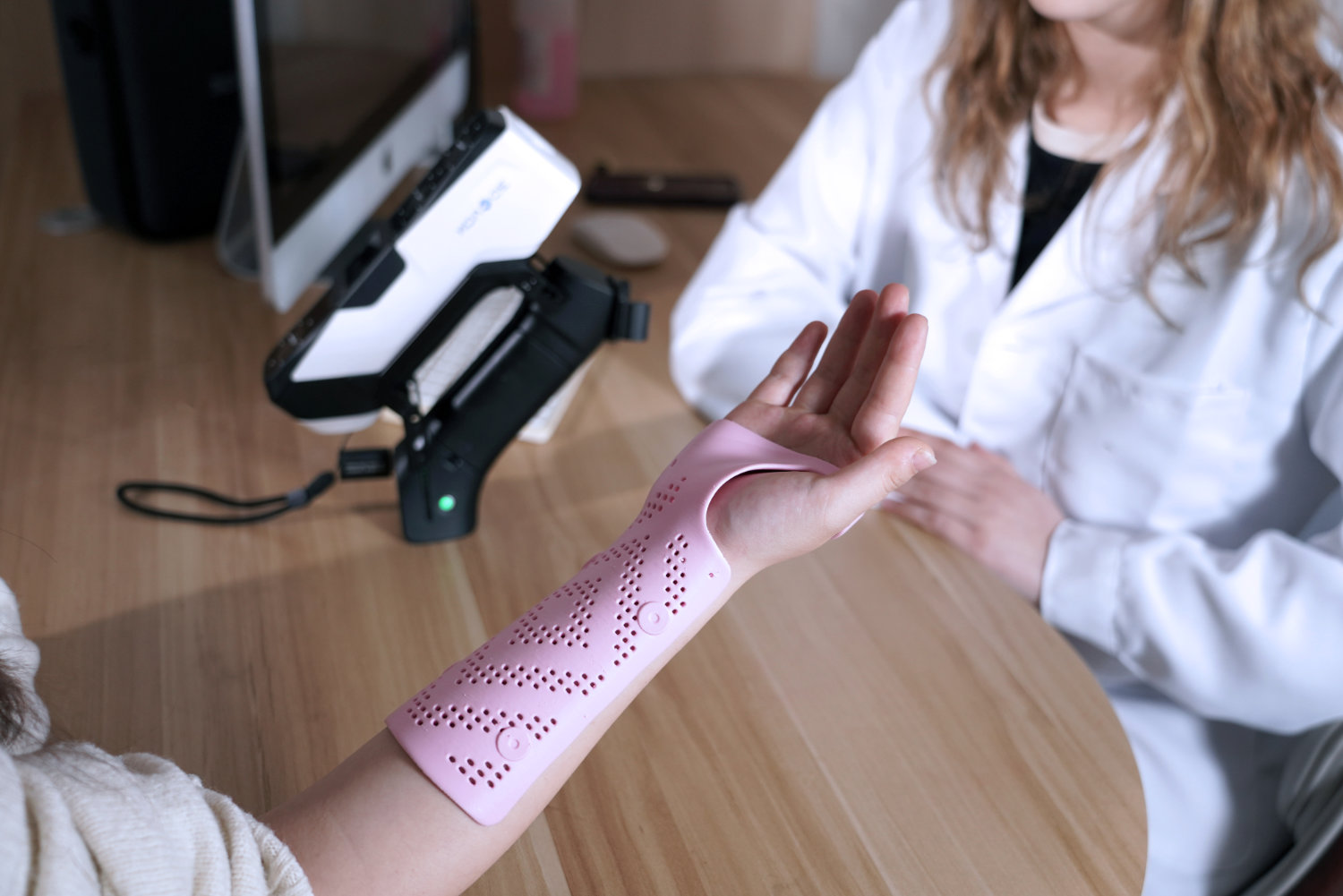

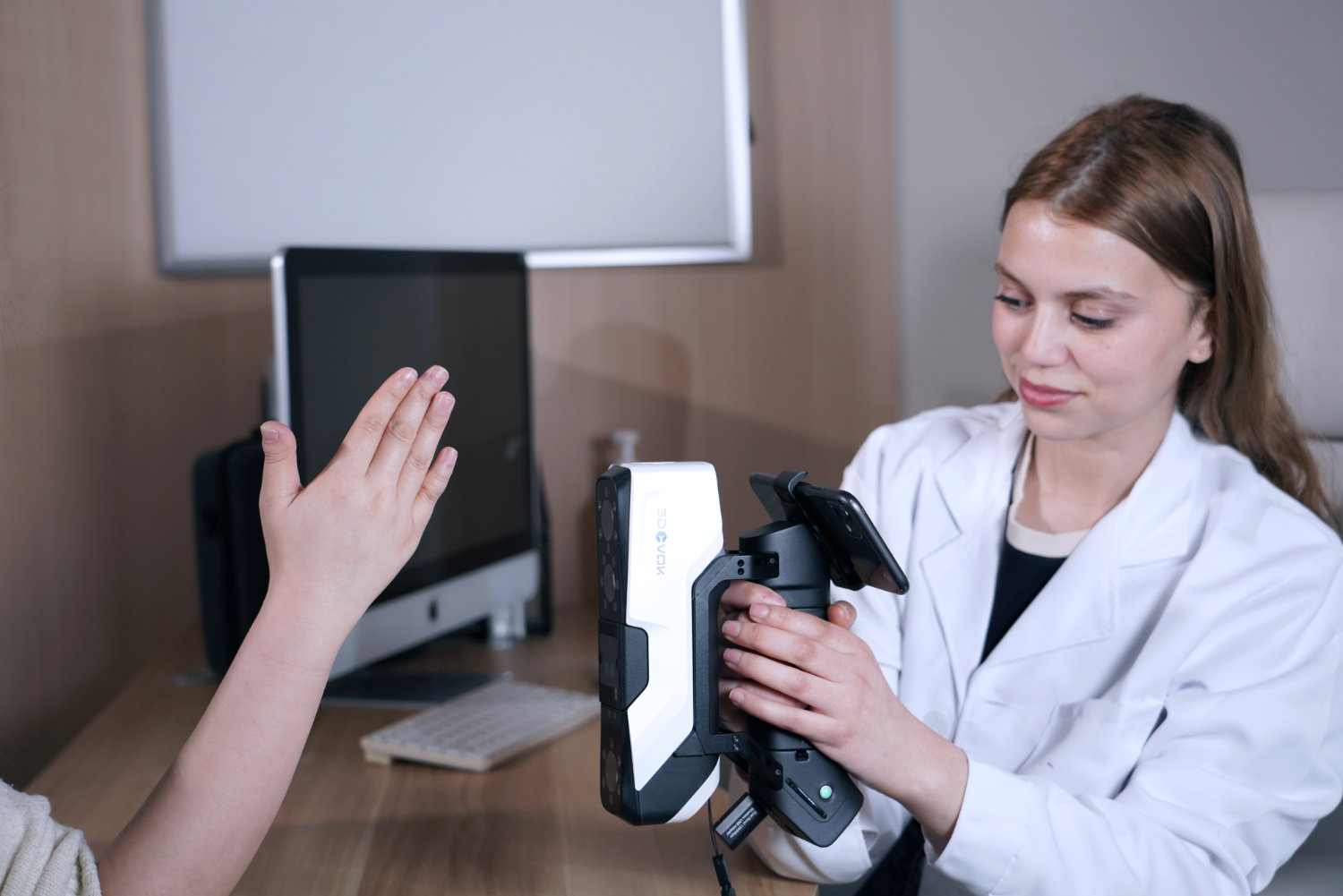

Medical Rehabilitation
Technology Enhancing Lives
Education & Research
Making New Technologies Accessible
Tech for All
Unlocking the Digital Future of Everything
See Models in 3D
Car Seats
Limbs
Parrot
Technical Specifications
| 3DeVOK MQ Technical Specifications | ||
| Light Sources | 22 Infrared Laser Lines [Invisible] | Infrared VCSEL Structured Light [Invisible] |
| Class of Lasers | Class Ⅰ (Eye-safe) | |
| Scan Modes | Infrared Laser Lines Supports markerless and invisible-light scanning | Infrared Linear-array Structured Light (Speckle) Supports markerless scanning, invisible-light scanning, partial fine scanning, and rapid scanning at ultra-long-distance range and ultra-large FoV |
| Accuracy✱ | Up to 0.08 mm | |
| Point Distance | 0.1-5 mm | |
| Alignment Mode | Support hybrid, markers, texture, and geometric features alignment | Support hybrid, texture, and geometric features alignment |
| Ability to Capture Texture | Yes | |
| Scanning Distance | 150-1,000 mm | 150-1,500 mm |
| Field of View | 140 mm × 140 mm – 490 mm × 490 mm | 50 mm × 75 mm – 1,100mm × 1,000mm |
| Scanning Frame | Up to 70 FPS (Marker alignment) | Up to 30 FPS |
| Scanning Speed | Up to 2,450,000 Points/s | Up to 4,500,000 Points/s |
| Output Formats | *.obj, *.stl, *.ply, *.asc, *.mk2, *.txt, *.epj, *.apj, *.spj, *.map, *.sk | |
| The Ability for 3D Printing | Supports .stl, .obj and other formats | |
| Wireless Scanning | Support (with an optional handle) | |
| Working Temperature Range | 0 – 40 ℃ | |
| Working Humidity Range | 10% – 90% RH (Non-condensing) | |
| Interface | USB 3.0 | |
| Scanner Dimensions & Weight | Dimensions: 215 mm × 73 mm × 53 mm; Weight: 550 g | |
| Power Source | DC: 12 V, 5.0 A | |
| Certifications | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC | |
| Recommended Configurations for PC | OS: Win10/Win11, 64-bit; CPU: i7-13650HX and above; RAM: 32GB and above; Graphic Card: NVIDIA discrete graphics card, NVIDIA RTX3060 and above; Graphics memory: 6GB and above | |
| ✱ The laboratory theoretical accuracy test results are subject to uncertainty errors. | ||

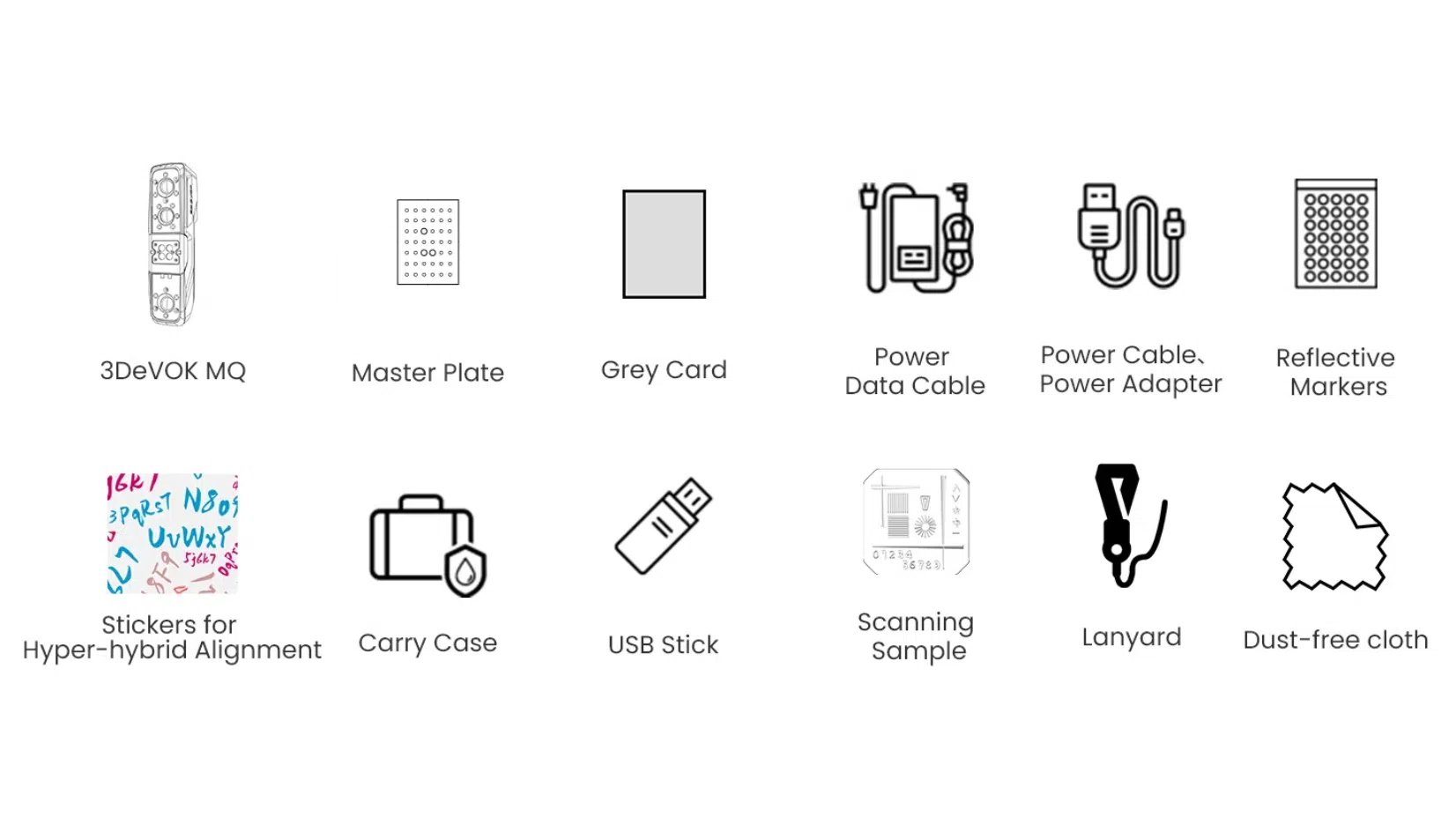

What Is In The Box
Carrying Case
Scanner

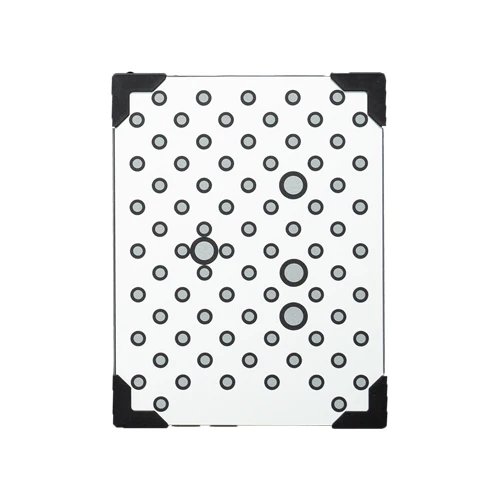

Calibration Board
Holder
3DeVOK MT Device and Packaging Parameter | ||
Item | Parameter | |
Size/mm | Weight/kg | |
3D Scanner | 215 × 73 × 53 | 0.62 |
Waterproof Case (with Scanner and Accessories) | 358 × 284 × 168 | 4.5 |
Shipping Carton (Complete Packaging) | 540 × 300 × 380 | 6.2 |

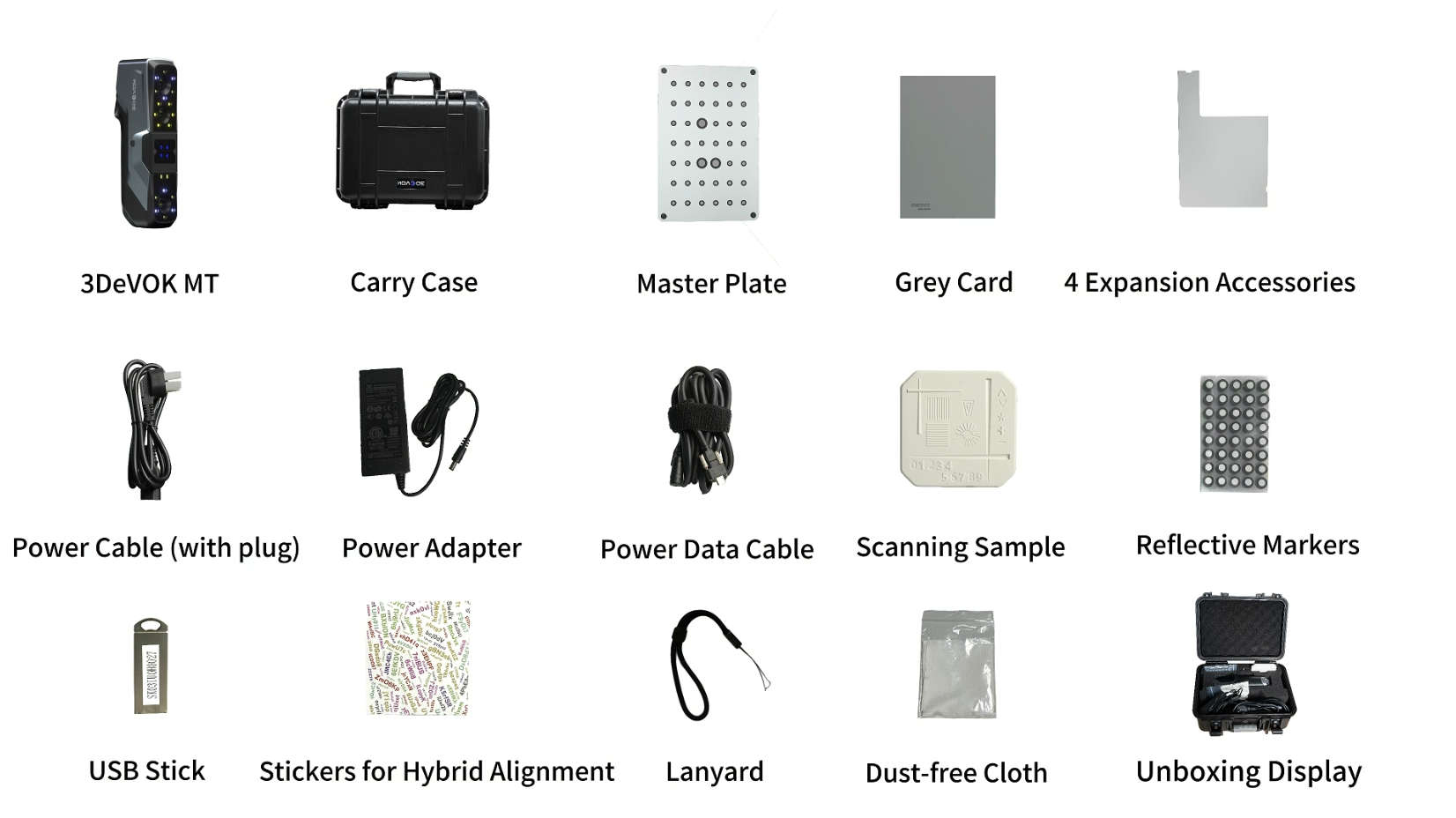

3DeVOK MT Configuration List | ||
No. | Product Components | Quantity |
| 1 | Scanner 3DeVOK MT | 1 pc |
| 2 | Master Plate (with Expansion Accessories) | 1 set |
| 3 | Power Cable (with plug) | 1 pc |
| 4 | Power Adapter | 1 pc |
| 5 | Power Data Cable-2.6 m | 1 pc |
| 6 | Carry Case | 1 pc |
| 7 | 6 mm Reflective Markers | 2000 pcs |
| 8 | 3 mm Reflective Markers | 500 pcs |
| 9 | Stickers for Hyper-hybrid Alignment | 1 pc |
| 10 | Scanning Sample (for Detail Verification) | 1 pc |
| 11 | USB Stick (with Scanning Software) | 1 pc |
| 12 | Grey Card | 1 pc |
| 13 | Lanyard | 1 pc |
| 14 | Dust-free cloth | 1 set |
With marker point alignment, the maximum speed can reach 70 FPS. With hybrid alignment, it can reach up to 30 FPS. The higher the scanning frame rate, the more data features are captured in a single frame, making the alignment smoother and scanning speed faster.
The scanning distance of the 3DeVok MT varies depending on the light source: it is 300mm for structured light and infrared laser, and 210mm for blue laser.
