3D スキャンは古代の碑文の拓本作成にどのように役立っていますか?

3D スキャン技術の絶え間ない発展により、考古学の 3D デジタル化はすでに避けられません。 数千年にわたる追跡の歴史を持つ国として、中国は文化遺産の保護において 3D スキャンの重要な存在を認識してきました。

Today we mainly talk about a traditional craft of cultural heritage protection derived from China: rubbing, and how the help of 3D scanning replaces it.

In archaeological practices, rubbing refers to a traditional method that aims to identify and analyze the shapes, characters, and patterns on the ancient plaque, tablet inscriptions, stone carvings, bronzes, etc.

The complete rubbing procedure uses Xuan paper and Chinese ink, for example, place a wet Xuan paper above an oracle bone script and slightly strike it with a brush to sink it in the groove. As soon as the paper starts to dry out, inking it evenly is when you finish a standard black-and-white rubbing.

Although the rubbing method is currently the mainstream transcription technique in the academic community, it still has a number of limitations. For instance, it is necessary to touch the oracle bones when making rubbings, which may cause damage to the bones.

In addition, the rubbing effect may be affected by temperature and humidity conditions as well as the operator’s own skill level. All the artificial factors are not conducive to neither the establishment of relatively mature rubbing standards nor long-term preservation and digital archives of cultural heritage.

Scantech’s 3D Scanning Solutions

Scantech’s 3D scanners provide non-contact and high-precision solutions for digital rubbings of cultural relics: from 3D laser scanners such as KSCAN-Magic, SIMSCAN, and TrackScan to infrared structured light 3D scanner iReal 2E.

The former choice provides up to 0.02 mm accuracy, and the latter one has the advantages of non-marker scanning, color restoration, and so on.

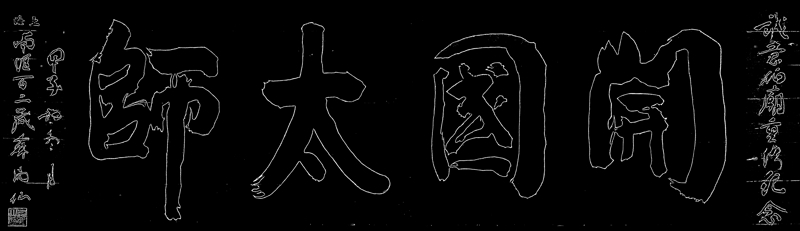

Digital Rubbing of Ancient Inscription (3D Laser Scanning)

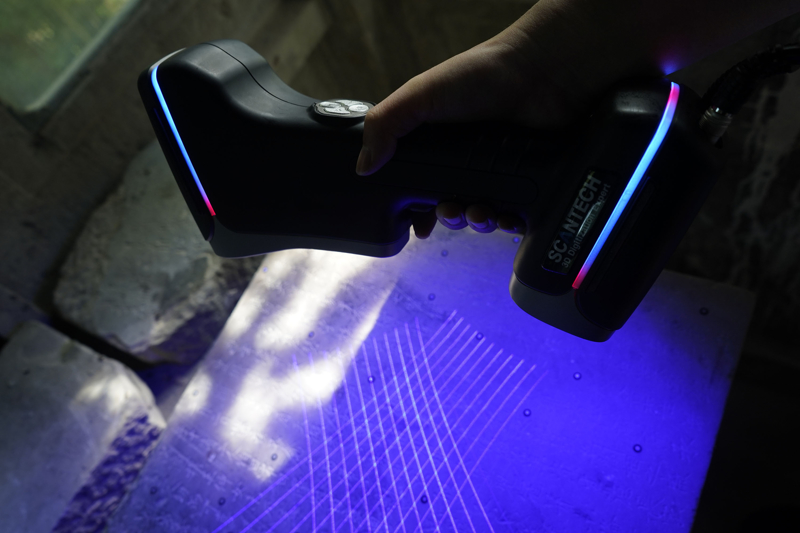

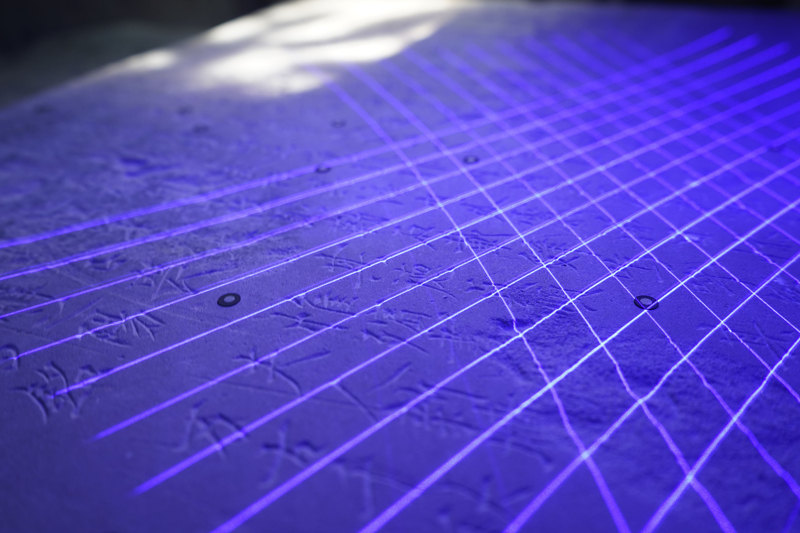

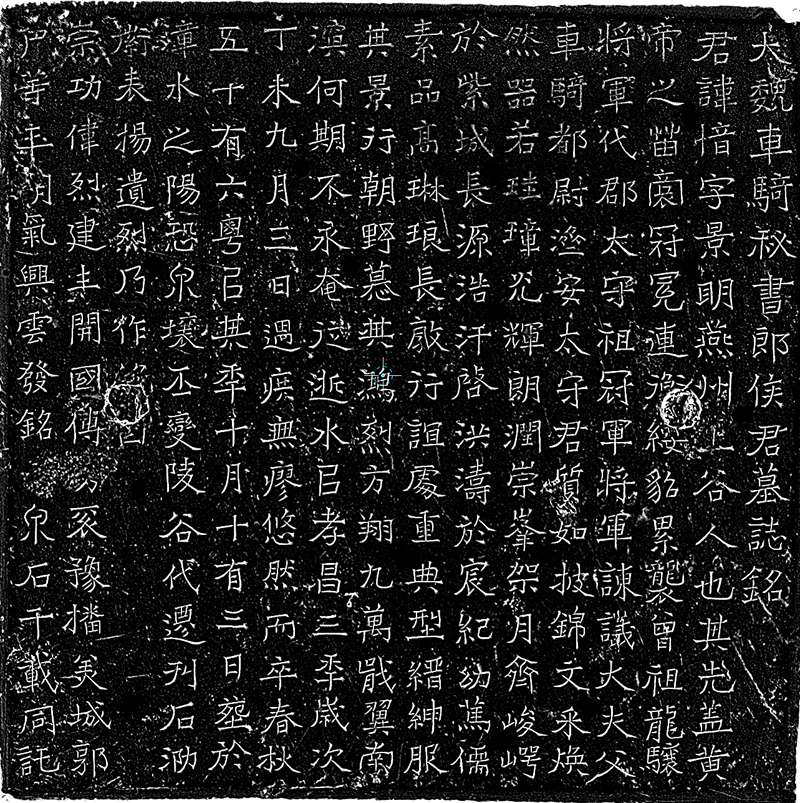

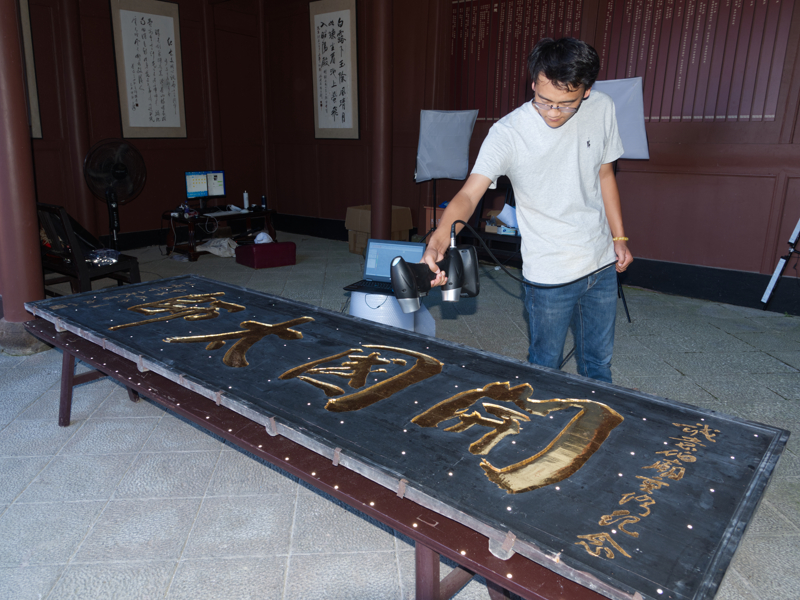

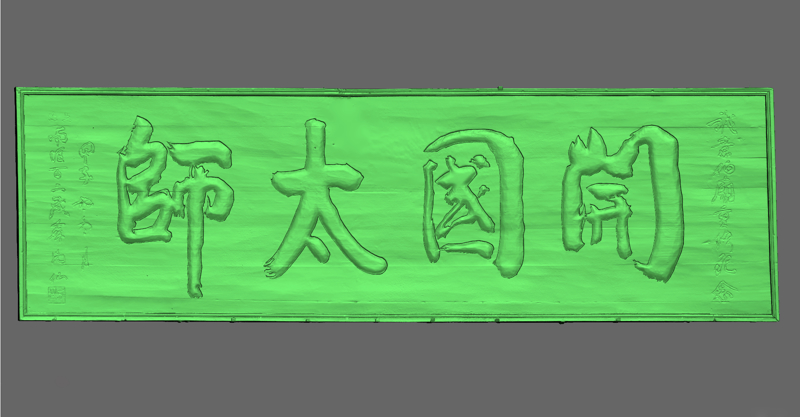

A case study regarding the 3D digitization of inscriptions was carried out by Scantech’s 3D laser scanner. After sticking some mark points on the inscriptions, the high-precision 3D data of the inscriptions were captured completely with its blue laser light.

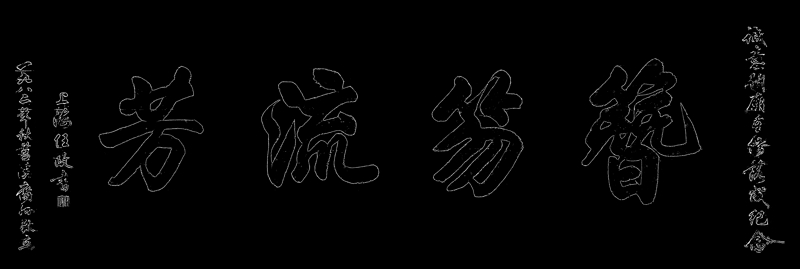

Digital Rubbing of Ancient Inscription (3D Laser Scanning+iReal 3D Mapping Software)

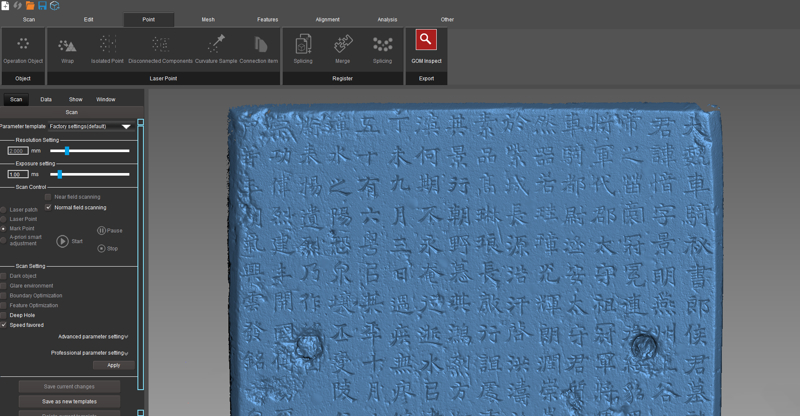

This is a thousand-year-old inscription, considering its long history, researchers have faced challenges of how to transcribe, disseminate, and share the textual information on it without causing damage to it. To avoid the potential damage caused by traditional rubbing, we chose Scantech’s PRINCE 3D scanner to capture its three-dimensional data.

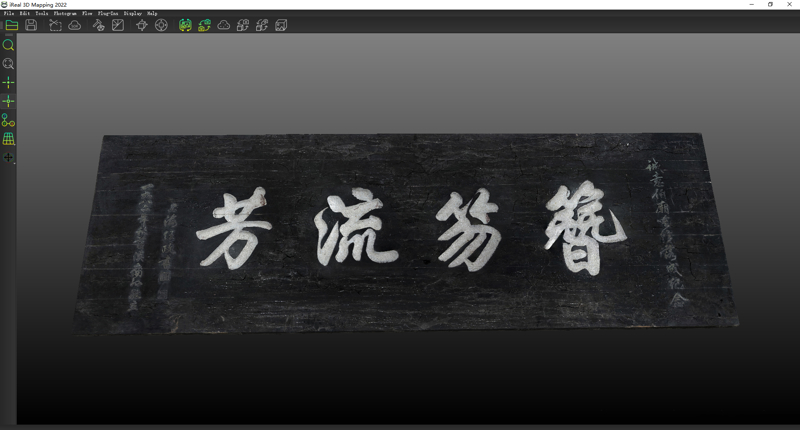

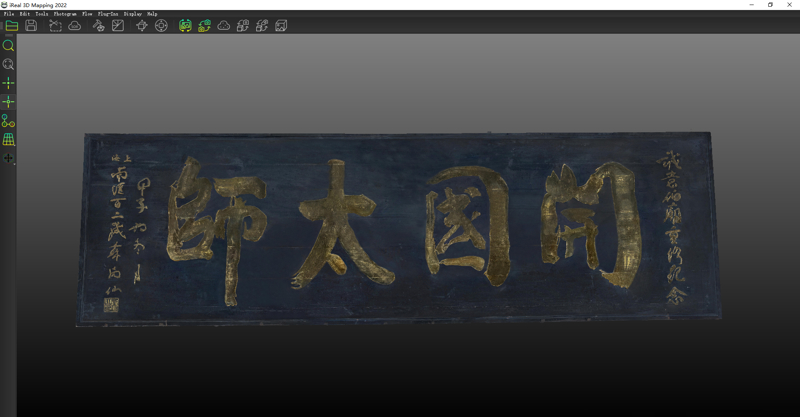

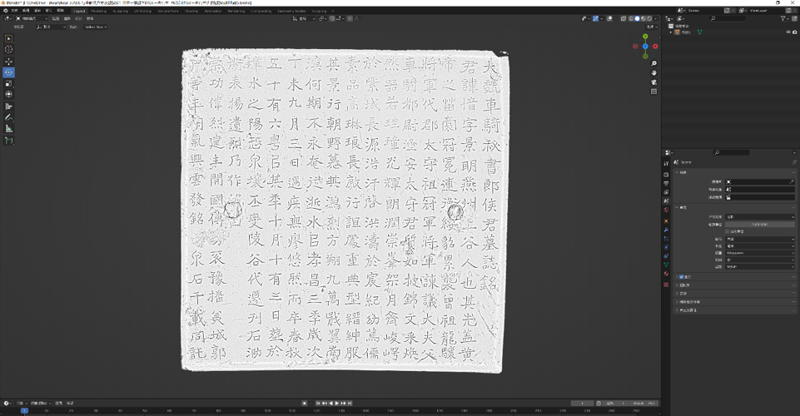

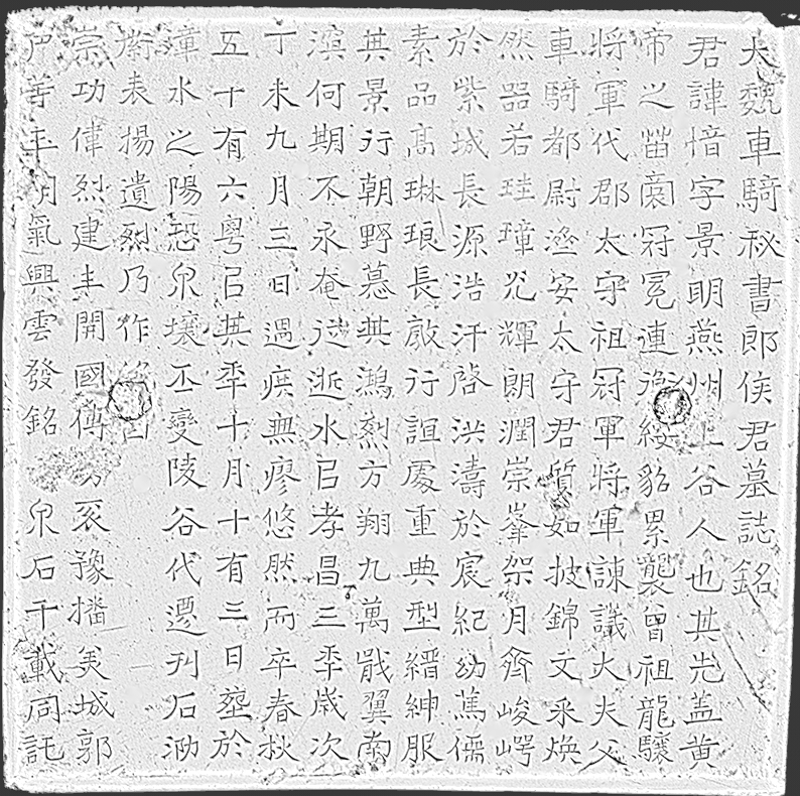

With the high-precision 3D scanned data of the inscription, we import the 3D model to iReal 3D mapping software to give it a more realistic color.

Conclusion

Using a 3D laser scanner and iReal 3D mapping software from Scantech to protect historical inscriptions has a lot of advantages compared to traditional rubbing and just 3D scanning.

• Not just a monochrome 3D mode, the inscriptions were well-preserved with high precision and realistic colors.
• The non-contact 3D digitization method can avoid the potential damages caused by direct contact with cultural heritage.
• The traditional method of rubbings has a relatively high requirement for the operator, while 3D scanning and iReal 3D mapping software can greatly reduce labor costs.
