Configuration Requirements
Minimum configuration |
|
---|---|
OS |
Win7 or above |
CPU |
Intel and AMD are available, Intel 6 generation or more |
RAM |
16G and above 1 |
graphics card |
NVIDIA discrete graphics card, support CUDA9.0 2 and above, the latest graphics card driver |
Port |
USB3.0 interface, and sufficient power supply, the more devices mounted on the same serial interface, the more likely the power supply will be insufficient |
Recommended Configuration Requirements |
|
OS |
Win11,Win10 |
CPU |
Intel I7-8750H and above |
RAM |
32G RAM and above, 64G recommended |
graphics card |
NVIDIA GTX1050Ti and above, dedicated GPU memory 4G and above, CUDA9.0 and above |
Port |
USB3.0 |
Important
Power supply: When the scanner is working, please plug in the power supply and set it to high-performance mode.
Environment: If protective software (such as 360 or computer manager) is installed, unpredictable errors may occur.
Operating Instruction
Hint
This product is a precision instrument, please handle it with care and do not drop it.
When the scanner is not in use, please unplug all cables from the scanner to prevent the scanner from tripping over the cables and causing damage to the device.
The scanner is turned on when the cable is connected and turned off when the cable is unplugged. There is no separate switch button.
The dongle must be inserted into the 3.0 USB port of the computer when scanning, otherwises, you can’t scan. It is very valuable, please keep it with care.
The computer must have two or more USB ports at the same time. If the ports are not enough, please use a hub.
Please copy the permanent authorization file (.RGF) in case of loss.
When storing the cable, please fold it gently along the previous crease, and please do not fold it in half violently so as not to reduce the service life.
This product is not dustproof or waterproof, please pay attention to the surrounding environment when using it.

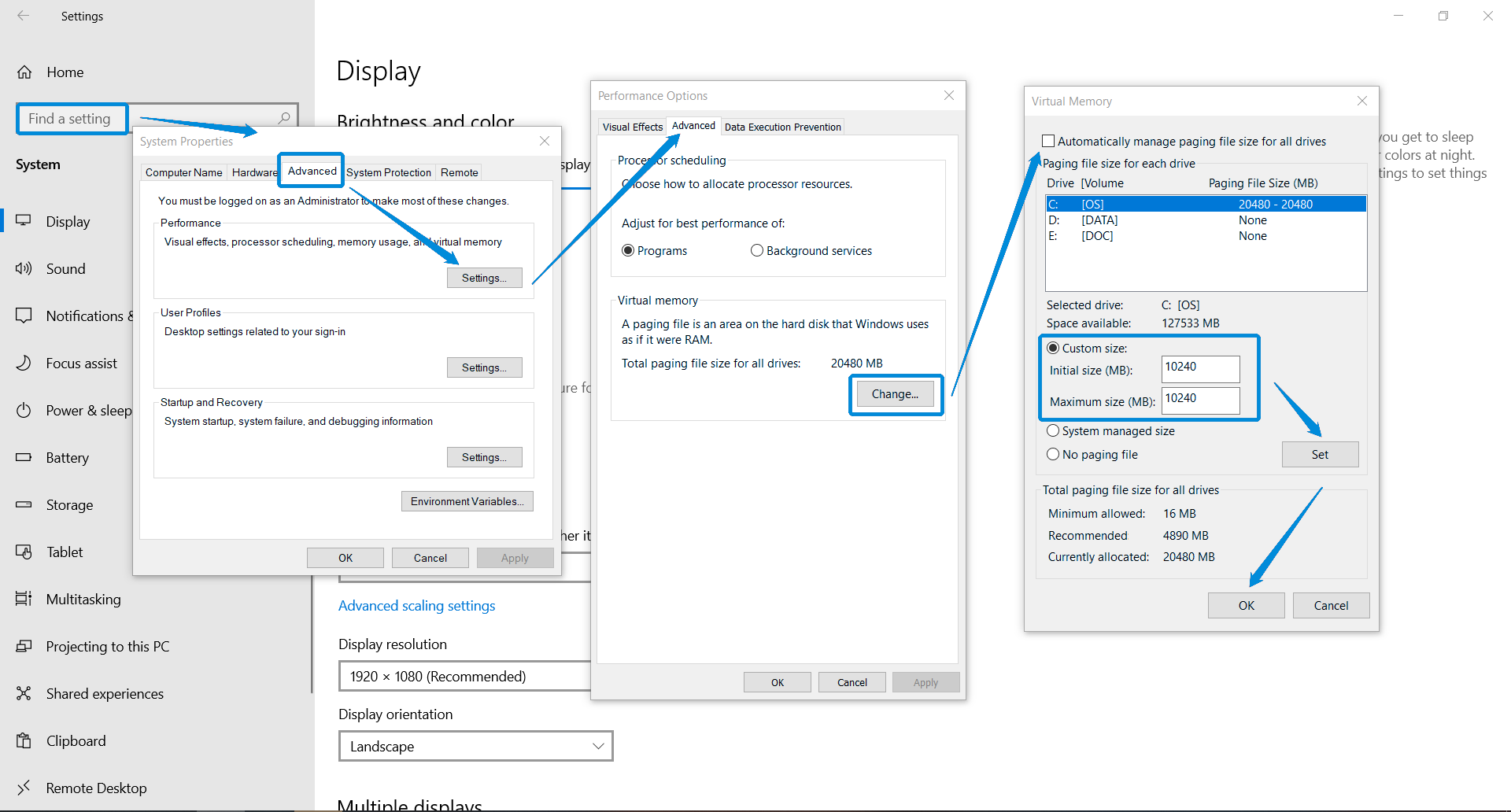

Virtual Memory
Expanding virtual memory can meet the requirements of temporary data storage again. You can do this several times.
- 1
When your memory is barely enough, it may not be enough to scan some large objects, you can modify Virtual Memory to solve it temporarily.
- 2
You can check the current CUDA version through
Help
>>System Information
>>Components
in the NVIDIA Control Panel.
